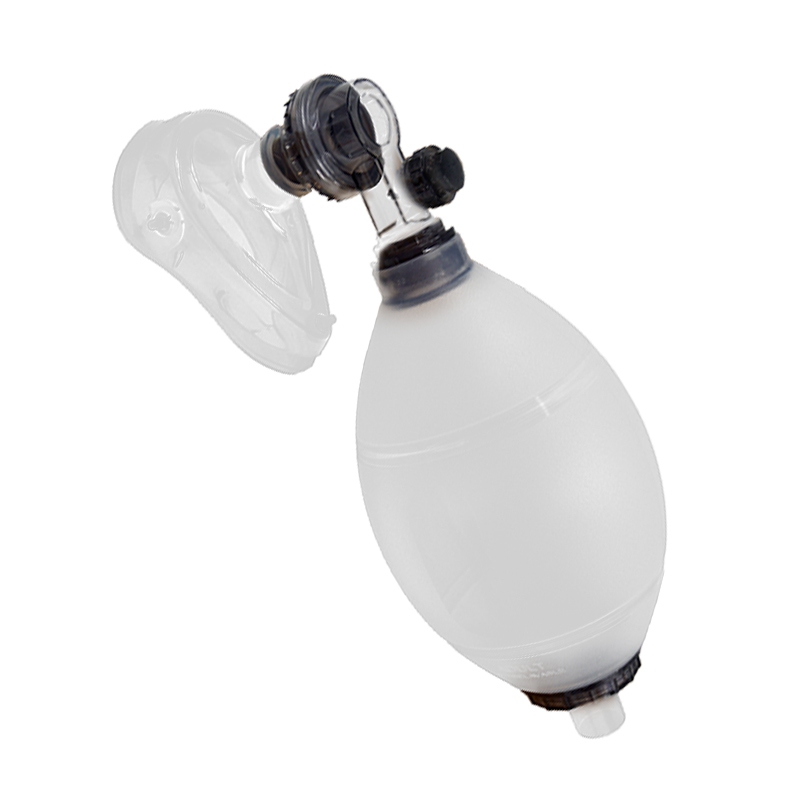

Liquid Silicone Manual Resuscitator Latex-free High Grade Medical Reusable

Product Description:

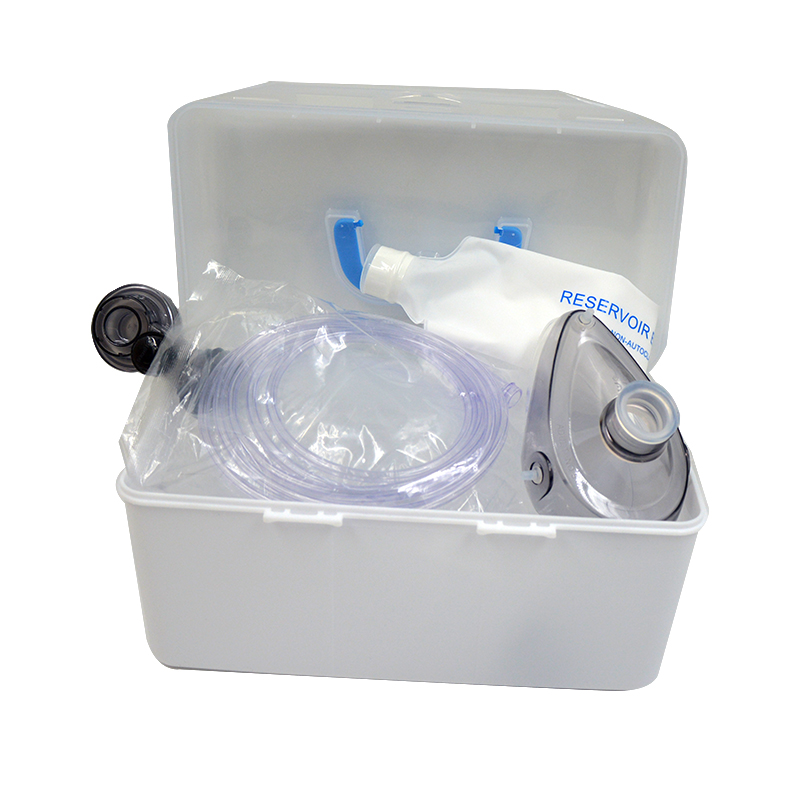

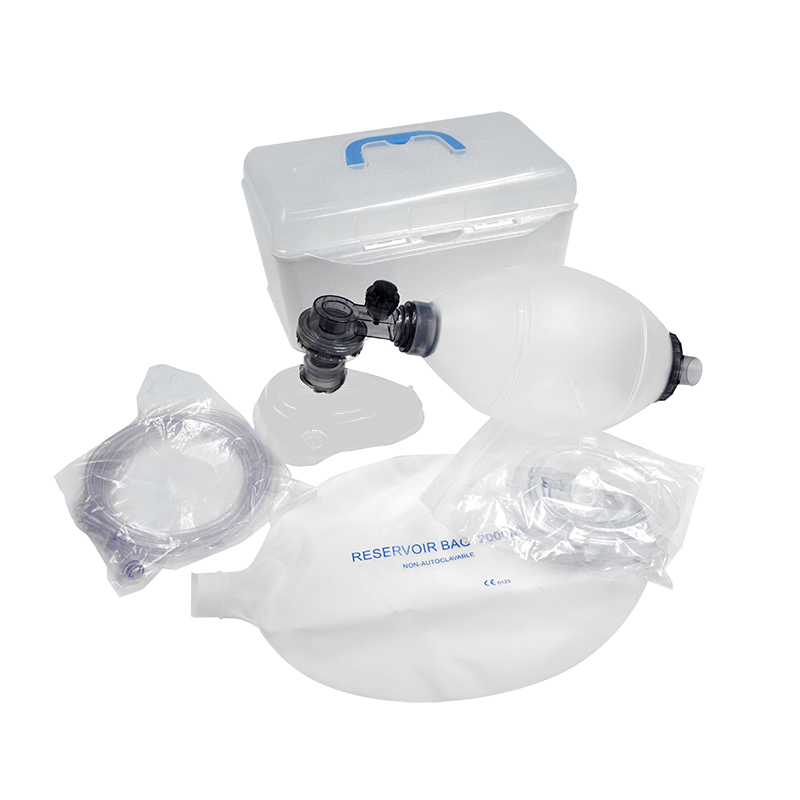

Contents: ball X1, air storage bag X1, PVC mask X1, oxygen pipe X1, PP box X1, English instruction X1;

Product Description :

• Standard with air storage bag, silicone mask, oxygen pipe;
• Accessories such as mouth opener, oropharyngeal airway, lifting belt can be freely selected;
• -100% grade silicone, latex free; Liquid material soft, better resilience, higher transparency; It can be sterilized and reused at high temperature.
• - Set 60cmH2O safety pressure limiting valve; - Integrated intake valve design, directly connected to the air storage bag and oxygen pipe;
• - Except for oxygen pipe, air storage bag and optional mouth opener, oropharyngeal vent accessories, ball, mask and PC connectors can be reused after 134°C high temperature and high pressure.
• - Single use; - Resuscitation balloon rough surface anti-skid function can give rescuers good maneuverability.

Product Specifications:

• - Balloon capacity 1650ml; - Silicone Mask 4# (foreign optional large size 5#);
• -2000ml capacity air storage bag; (also available as an optional 2500ml); - Oxygen pipe 2.1 m;
• - Standard patient end joint diameter: 15/22mm; - Pressure limiting safety valve: 60 cmH2O;

Product feature:

Latex-free medical grade liquid silicone raw materialHigh transparency bag for complete internal visibilityReusable and autoclaved up to 134 C (273F]

Including build-in pressure relief valve , oxygen reservoir bag , silicone mask and oxygen tubingAdditional accessories airway, mouth opener, peep valve , manometer etc availablePrivate labeling and packacing available.

Frequently asked Questions:

The problems existing in the clinical application of silicone artificial resuscitator were analyzed, incorrect operations were corrected in time, and operation procedures were standardized. Everyone was required to master the correct operating procedures and skills, so as to improve the correct utilization rate of simple breathing apparatus. Clinical application of silicone artificial resuscitator common problems:

1. The airway opening method is incorrect, resulting in inadequate airway opening

2. Improper selection of the size of the face, insufficient aeration of the face, affecting the ventilation effect.

3. Only when the ball is connected with the oxygen storage bag can it give full play to its effectiveness. In the process of application, the oxygen storage bag is not used correctly, or the oxygen storage bag is not filled with oxygen before it starts to ventilate, resulting in insufficient oxygen concentration.

4. The face fixing technique is incorrect and the "EC" technique is not used correctly

5. When using, do not pay attention to tidal volume, respiratory rate, suction/breathing ratio, over frequency and too strong air supply, especially for patients with weak breathing.

6. Insufficient attention is paid to the pressure safety valve in the operation, resulting in incorrect use.

7. The easy problem with the use of silicone artificial resuscitator is that the valve leaks and the patient cannot get effective ventilation, so regular inspection, testing, repair and maintenance are required, but the detection method in clinical application is simple and not standard

8. The silicone artificial resuscitation apparatus was not disinfected in time after use, and the eye toxicity was not strictly in accordance with the requirements of detoxification and isolation.
