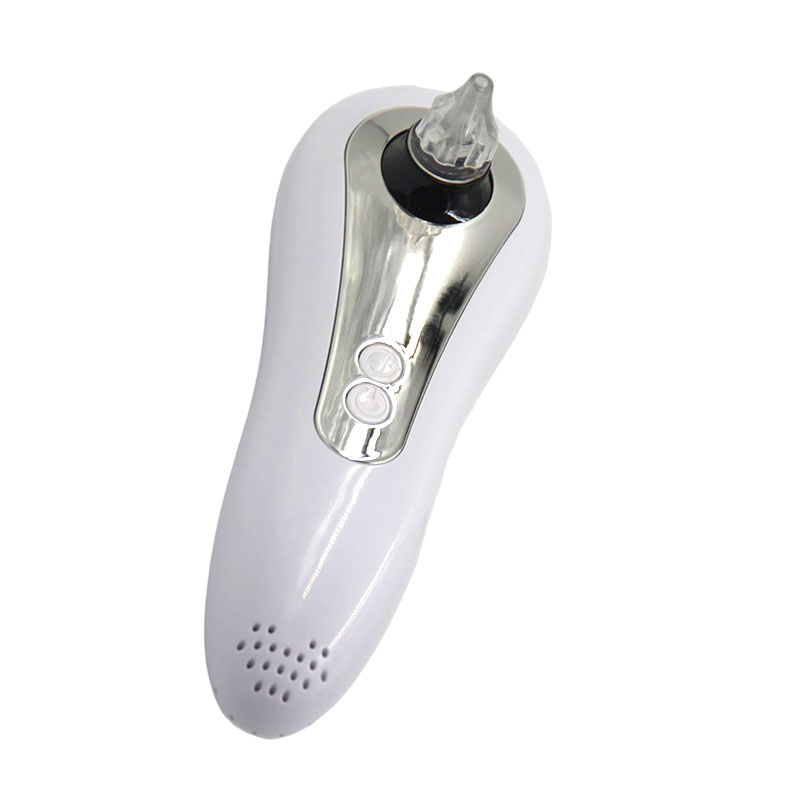

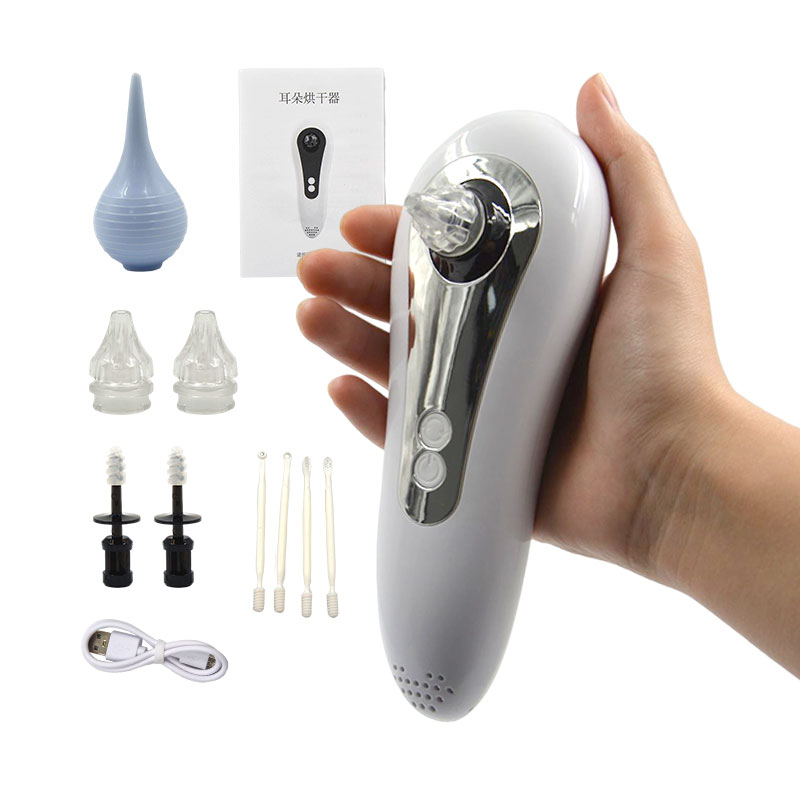

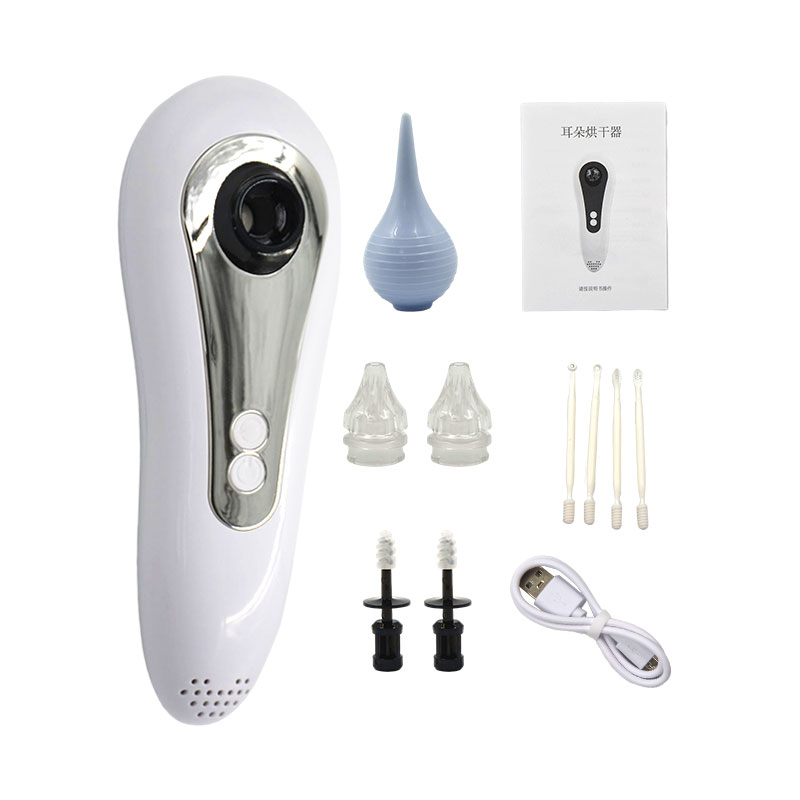

Ear Dryer to Reduce Ear Canal Infection for Swimmer's Ear

Technical element

1. In order to quickly clean up the water in the ear, the technology provides an ear dryer.

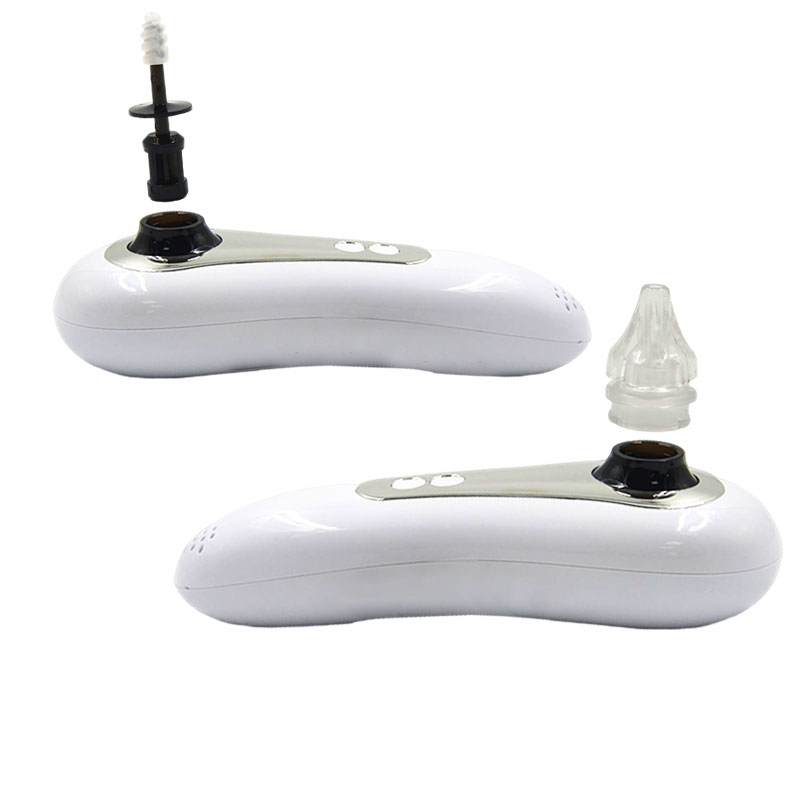

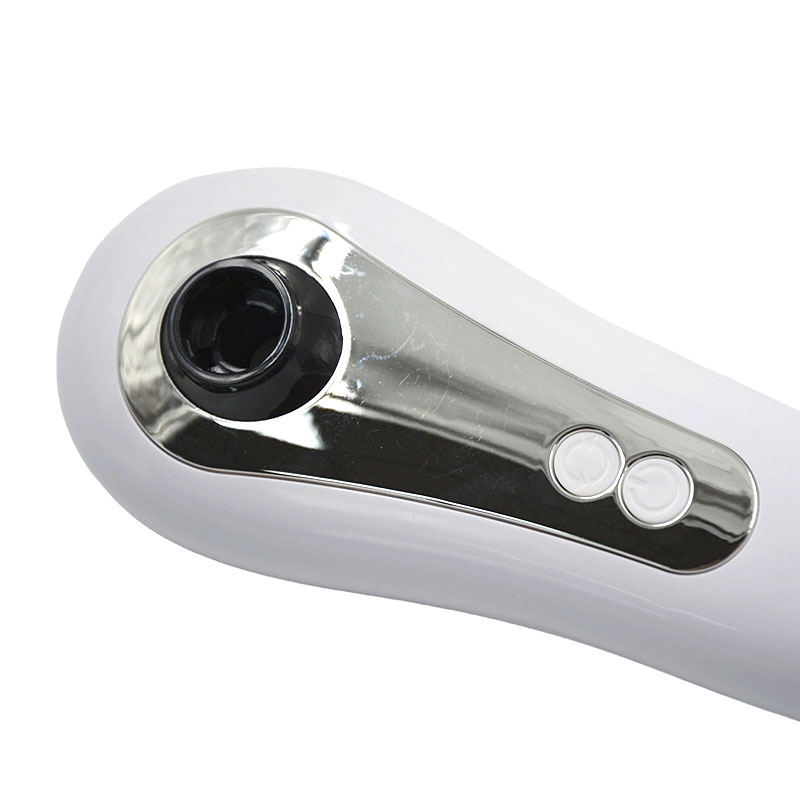

2. An ear dryer provided by this technology adopts the following technical scheme: An ear dryer comprises an air duct, an air supply component, a heating component and a nozzle, the heating component is embedded in the air duct, the air duct is provided with an air inlet and an air outlet, the air supply component is arranged at the air inlet of the air duct, the nozzle is arranged at the air outlet of the air duct, the outside wall of the nozzle is provided with at least two support pieces, At least two of the support sheet is arranged along the circumferential interval of the nozzle, the end of the support sheet away from the air duct and the nozzle is fixed connected, the outer wall of the support sheet from the end of the nozzle away from the air duct to the end of the nozzle close to the air duct is gradually away from the nozzle; After air is conveyed to the ear through a nozzle, the air can be discharged from the ear through a gap between at least two of the support pieces.

3. By using the above technical scheme, the nozzle is inserted into the ear hole, and the air supply component drives the air into the air duct. When the air passes through the air duct, it is heated by the heating element, and the heated air is transported to the ear hole through the nozzle and then discharged through the gap between two adjacent support pieces. Realized the rapid cleaning of ear hydrops.

4. Optional, the air supply assembly comprises a sleeve, a fan, a air supply driving source and a substrate, the substrate is fixed in the sleeve, the substrate has at least one ventilation hole, the air supply driving source is fixed in the sleeve, the output end of the air supply driving source is fixed through the substrate after the fan blade; When the fan blade rotates, the air enters the air duct through the ventilation hole and the air inlet in turn.

5. By adopting the above technical solution, when the air supply driving source drives the fan blade to rotate, the air enters the air duct through the ventilation hole and the air inlet under the drive of the fan blade to provide the power source for drying the ears.

6. Optionally, the air duct comprises a first retraction section, connecting section and steering section, the first retraction section is connected with the connecting section, the steering section in turn, the first retraction section of the inner cavity from the first retraction section to the direction of the connecting section gradually reduced, the air inlet is arranged in the first retraction section away from the connecting section of one end, The air outlet is arranged on the steering section, and the nozzle is arranged on the air outlet of the steering section.

7. By using the above technical scheme, the setting of the first inlet section makes the air flow rate at the outlet greater than that at the inlet, which improves the air flow rate when blowing out through the outlet and improves the drying effect of the ear. 8. Optionally, the air duct also includes a second shrinking segment, the second shrinking segment is arranged at one end of the connecting segment away from the first shrinking segment, the inner cavity of the second shrinking segment gradually shrinks from the first shrinking segment to the connecting segment, and the second shrinking segment is connected with the steering segment.

9. By adopting the above technical scheme, the setting of the second orifice section makes the flow velocity of air at the steering section greater than that at the connecting section, further improving the flow velocity of air blowing out through the outlet and improving the xi effect of ear drying.
